| Resolution | 203 dpi |
| Printing Method | Direct Thermal |
| Interface | USB or USB+Bluetooth+WiFi |
| Emulation | TSPL、ZPL、CPCL、DPL、EPL |
| Sensor | Gap sensor/open cover sensor/Black label sensor |
| Print Speed | 150mm/s (Max) |
| Printing Width | 108mm (Max) |
| Printing Length | 1778mm (Max) |
| SDRAM | SDRAM 8MB |
| FLASH | FLASH 8MB (expandable) |
| Bar code format | Code128、EAN128、ITF、Code39、Code93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CodeBar、Postnet、UPC-A、UPC-A+2、UPC-A+5、UPC-E、UPC-E+2、UPC-E+5、MSI、MSIC、PLESSEY、CPOST、ITF14、EAN14、Code11 |
| Two-dimensional code format | QR code、PDF417、Micro PDF 417、DataMatrix、AZTEC |
| Character Enlargement/rotation | 1-10x magnification /0°, 90°, 180°, 270° rotation/mirror printing |
| Character | GB18030、BIG5、ASCII |
| Extended Character | PC437、Katakana、PC850、PC860、PC863、PC865、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866、PC852、PC858、IranII、Latvian、Arabic、PT151、PC747、WPC1257 |
| Character size | 9x17dot, 12x24dot, 24x24dot |
| Paper Type | Continuous Paper, Label Paper,Folded Paper, Black label Paper |
| Roll Width (including backing Paper) | 30~114mm |
| Roll Thickness (including backing Paper) | 0.12~0.26mm |
| FEED | Front exit |
| Power | Input Power Supply: AC100 〜240V Output Power: DC 24V~2.5A |
| Working Environment | Operating Temperature: 5~40°C Operating Humidity: 25~85% |
| Storage Environment | Storage Temperature: -10~60℃ Storage Humidity: 10~90% |
| Print Head Life | 150km (Print rate 18.5%) |

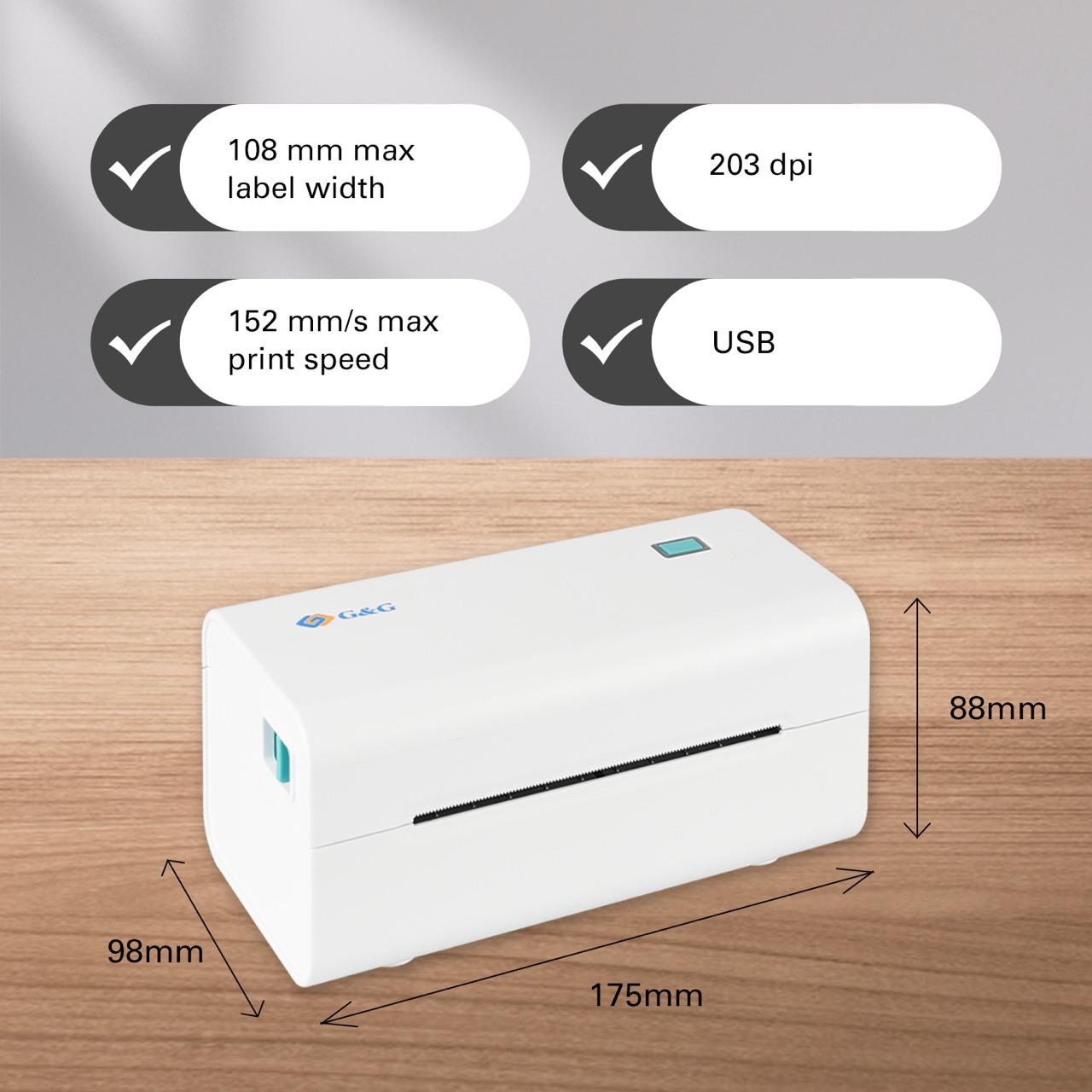

| Dimension | 175 * 98.5 * 90 mm |
| Weight | 0.65KG |
| Accessories (standard) | 1. Power adapter 2. Power cord 3. USB cable 4. Quick Installation Guide |
| Accessories (optional) | External roll holder |
| Certification | CCC, CE, RoHS, REACH, TELEC (Japan), EAC (Russia), FAC (Russia), SRRC, BIS (India) |
